Technische Daten
- Kabelsteckverbinder, vor Ort installierbare Stecker und Einbaudosen erhältlich
- Kabellänge nach Kundenwunsch
- Schutzart IP67
- 3-, 4-, 5-, 6- oder 8-polige Verbindungsstecker erhältlich
- Betriebsspannung 60 V
- Nennstrom 4 A, 3 A, 1 A
- Ausführung als Anti-Vibrations-Verriegelungsschraube
| Standard: | IEC 61076-2-104 | |

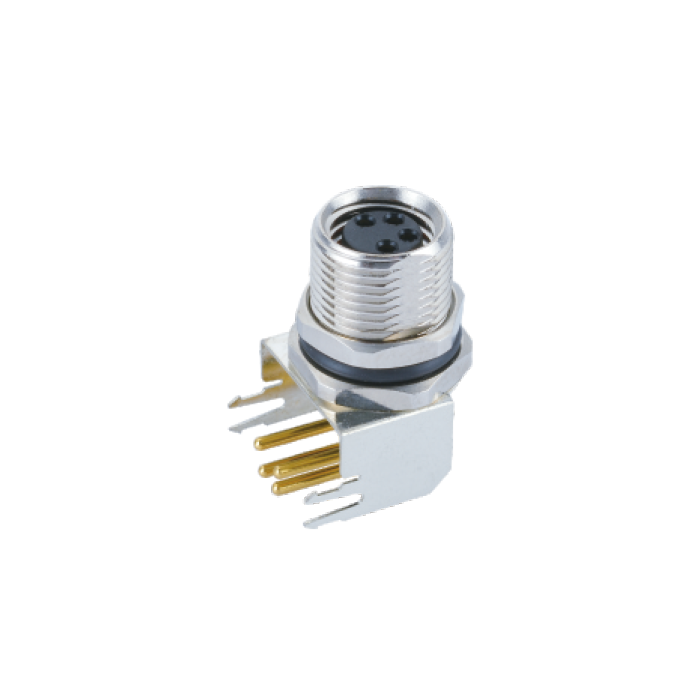

| Connector: | M8, straight, angled | |
| Coding: | A, B | |
| Contacts Number: | 3, 4, 5, 6, 8 | |
| Current: | 1A, 3A | |
| Voltage: | 30V, 60 | |

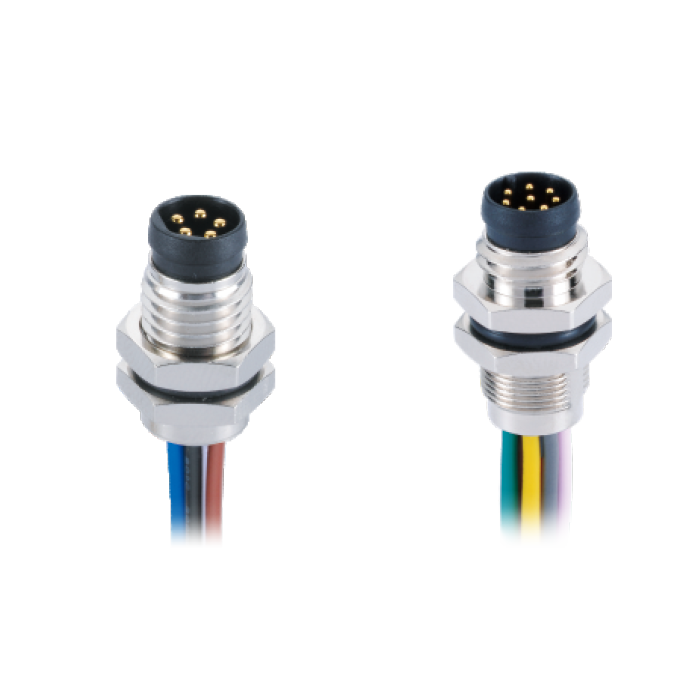

| Fastening: | Front or rear fastening | |
| Insulation resistance: | ≥100MΩ | |
| Contacts resistance: | ≤ 5mΩ | |
| Ambient temperature: | -25℃ ~ 80℃ | |

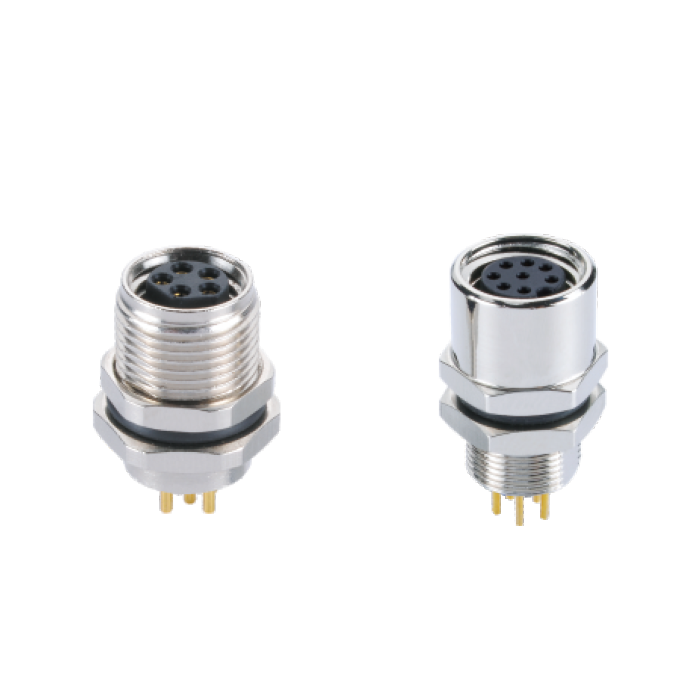

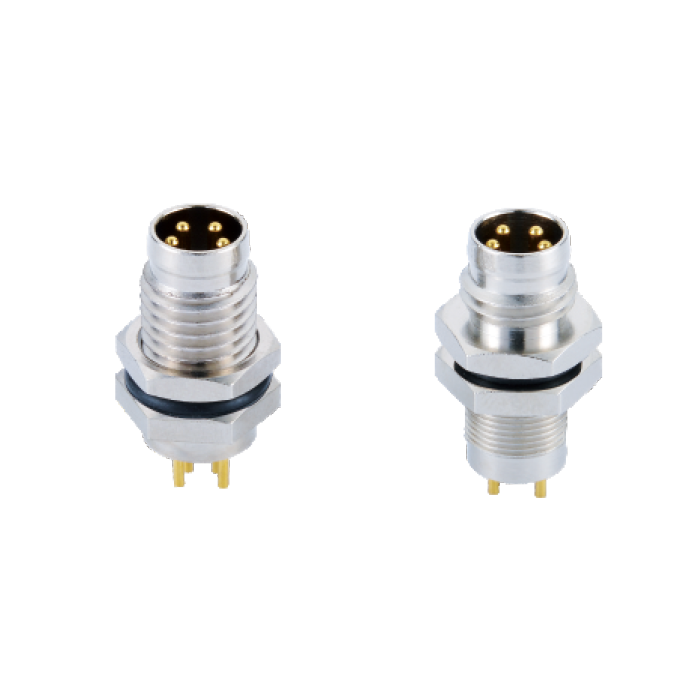

| Wire termination: | PCB Dip Soldering | |
| Over-molding: | TPU | |
| Contact carriers: | TPU + GF, Black | |
| Contacts: | Brass / Phosphor brass, Gold-plated , Solid Pin | |
| Coupling nut/screw: | Brass with Nickel-plated | |
| Seal: | FKM/ Silicon O-Ring | |
| Mechanical lifespan: | ≥200 mating cycles | |
| IP rating: | IP67/ IP68 in locked condition |
- Resistant to chemicals and oils
- Resistant to microbes and hydrolysis
- Pollution degree 3 (III)
- RoHS compliance
